Rainforest Algae Corp. has developed an advanced rotational photobioreactor platform designed to optimize culture mixing and mass gas transfer between liquid and gas phases. The system has been engineered to improve reaction yields while reducing operating energy requirements and environmental impact.
Unlike open raceway ponds, the sealed reactor vessels provide a controlled cultivation environment suitable for year-round operation, including in colder climates. Systems may be configured with controllable lighting, temperature regulation, gas exchange, nutrient dosing, harvesting pumps, and integrated parameter sensors. All reactor systems are clean-in-place (CIP) capable, and smaller units may be autoclaved.
The platform is rapidly scalable from 2L laboratory systems to multiple cubic-meter industrial configurations. Systems support batch, semi-batch, or continuous operations and may be integrated with renewable energy sources or greenhouse enclosures to reduce life cycle energy demand. Control and monitoring systems enable data logging, graphing, WiFi connectivity, and remote access across desktop and smart devices.
MAKING THE IMPROBABLE POSSIBLE!
Access our complete product brochures and technical specifications in English and French.

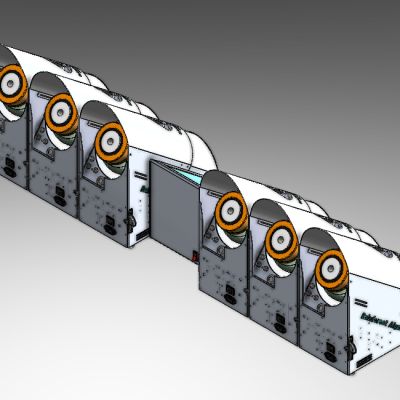

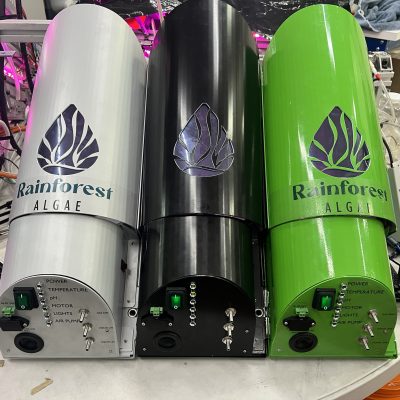

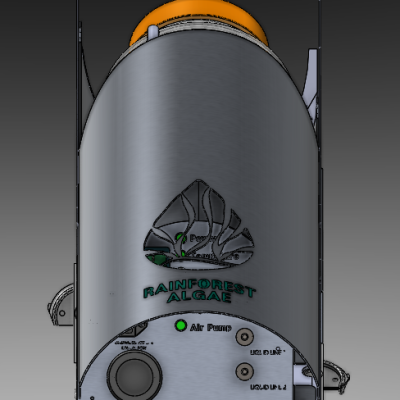

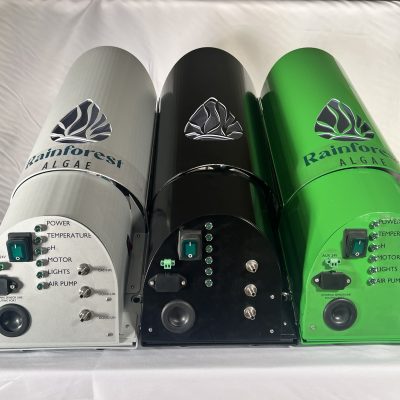

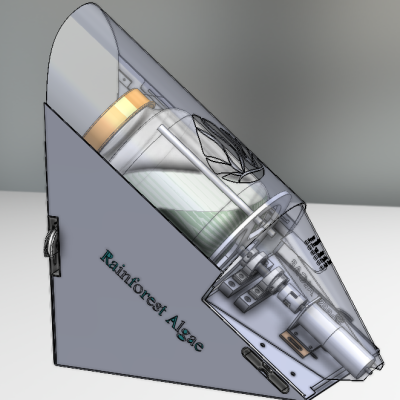

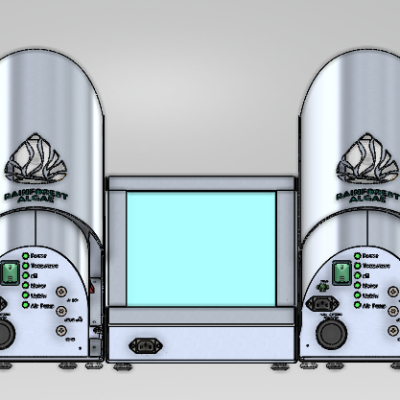

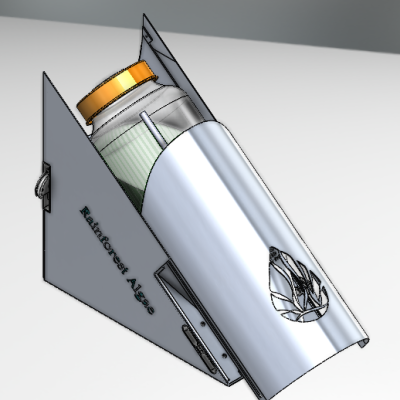

Laboratory Scale Rotational Photobioreactor. Designed for controlled strain development, academic research, and small scale process validation.
Key Highlights
| Parameter | Specification |
|---|---|
| Culture Volume | 2 L / 0.5 US gal ±20% |
| Reactor Vessel | 4 L / 1.1 US gal Sealed PET or Borosilicate |
| Vessel Code | RF-2L-RV-PET / RF-2L-RV-Bor |
| Power | 50 W |
| Power (6 units) | 300 W |
| Voltage | 110–120 VAC |
| Frequency | 50 / 60 Hz |
| Length | 450–520 mm / 17-21 in (closed / open) |
| Width | 210 mm / 8.5 in |
| Height | 380–485 mm / 15-19 in (open / closed) |
| Weight | 8.5 kg / 19 lb |
| Power Cord | 1 m / 3.3 ft |
| Peristaltic Pumps | 2 (up to 0.5 L/min) |
| Air Pump | 1 with 0.2 µm HEPA filter |
| Monitoring | 1 K-Type Thermocouple + 1 pH Probe |
Other probes available on request.
Integrated Control Module System (CMS)
Controlled Parameters
CMS Dimensions
| Parameter | Value |
|---|---|
| Length | 350 mm / 14 in |
| Width | 250 mm / 10 in |
| Height | 400 mm / 16 in |
| Weight | 4.5 kg / 10 lb |
CHINOOK RF-10L
Debut of 10L programmable research algae cultivation photobioreactor Model RF-010 at the Algae Biomass Summit in October 2023.
Pilot Scale Rotational Photobioreactor. Designed for pilot validation, process optimization, and scaled laboratory research beyond bench scale.
Key Highlights
| Parameter | Specification |
|---|---|
| Culture Volume | 10 L / 2.6 US gal ±20% |
| Reactor Vessel | 24 L Sealed PET or Borosilicate |
| Vessel Code | RF-10L-RV-PET / RF-10L-RV-Bor |
| Power | 350 W |
| Voltage | 110–120 VAC |
| Frequency | 50 / 60 Hz |
| Length | 965 mm / 38 in |
| Width | 430 mm / 17 in |
| Height | 710–1090 mm / 28-43 in (closed / open) |
| Weight | 34 kg / 75 lb |
| Power Cord | 1 m / 3.3 ft |
| Peristaltic Pumps | 4 (up to 0.5 L/min) |
| Air Pump | 1 with 0.2 µm HEPA filter |
| Monitoring | 1 K-Type Thermocouple + 1 pH Probe |
Other probes available on request.
Integrated Control Module System (CMS)
Controlled Parameters
Note: User interface app may be installed on laptop, desktop, or smart devices.
DOLPHIN RF-420L
Commercial Multi Tube Rotational Photobioreactor. Designed for pre-commercial and commercial scale cultivation using a 6 tube sealed reactor architecture.
Key Highlights
Reactor Configuration
Engineering Advantage
Unlike conventional bottom sparging systems, gas transfer is achieved through rotational vessel mixing.
Benefits:
| Parameter | Specification |
|---|---|
| Total Culture Volume | 420 L / 110 US gal ±20% |
| Reactor Vessel System | RF-420L-RV-SYSTEM |
| Individual Reactor Volume | 70 L / 18 US gal |
| Power | 2 kW |
| Power (Ambient Sunlight) | ~500 W |
| Voltage | 110–120 VAC |
| Frequency | 50 / 60 Hz |
| Length | 2.4 m / 8 ft |
| Width | 1.6 m / 5.25 ft |
| Height | 2.1 m / 7 ft |
| Recommended Clearance | 1 m / 3.3 ft |
| Operating Weight | 1350 kg / 3000 lbs |
| Peristaltic Pumps | 13 (up to 6 L/min) |
| Air Pump | 1 with 0.2 µm HEPA filter |
| Monitoring | 1 K-Type Thermocouple + 1 pH Probe per tube |
Other probes available on request.
Integrated Control Module System (CMS)
Controlled Parameters
Note: User interface app may be installed on laptop, desktop, or smart devices.
BELUGA RF-1250L
Commercial Rotational Tubular Photobioreactor System. Designed for full commercial deployment using a six-tube sealed rotating reactor architecture.
Key Highlights
Reactor Configuration
Engineering Advantage
Gas transfer is achieved through rotational vessel mixing rather than bottom sparging.
Benefits:
| Parameter | Specification |
|---|---|
| Total Culture Volume | 1250 L / 330 US gal ±20% |
| Reactor Vessel System | RF-1250L-RV-SYSTEM |
| Individual Reactor Volume | 208 L / 55 US gal |
| Power | 3.5 kW |
| Power (Ambient Sunlight) | ~800 W |
| Voltage | 110–120 VAC |
| Frequency | 50 / 60 Hz |
| Length | 3.3 m / 11 ft |
| Width | 1.6 m / 5.25 ft |
| Height | 2.25 m / 7.4 ft |
| Recommended Clearance | 1 m / 3.3 ft |
| Operating Weight | 2500 kg / 5500 lbs |
| Peristaltic Pumps | 13 (up to 6 L/min) |
| Air Pump | 1 with 0.2 µm HEPA filter |
| Monitoring | 1 K-Type Thermocouple + 1 pH Probe per tube |
Other probes available on request.
Integrated Control Module System (CMS)
Controlled Parameters
Note: User interface app may be installed on laptop, desktop, or smart devices.
Commercial Rotational Tubular Photobioreactor System. Designed for full commercial deployment using a six-tube sealed rotating reactor architecture.
Key Highlights
Dual Vessel Design
Unlike the standard Beluga, which rotates each outer reactor vessel, the IT version incorporates:
Engineering Advantages
| Parameter | Specification |
|---|---|
| Total Culture Volume | 1250 L / 330 US gal ±20% |
| Reactor Vessel System | RF-1250L-IT-SYSTEM |
| Individual Reactor Volume | 208 L / 55 US gal |
| Power | 2.5 kW (est.) |
| Power (Ambient Sunlight) | ~800 W |
| Voltage | 110–120 VAC |
| Frequency | 50 / 60 Hz |
| Length | 3.3 m / 11 ft |
| Width | 1.6 m / 5.25 ft |
| Height | 2.25 m / 7.4 ft |
| Recommended Clearance | 1 m / 3.3 ft |
| Operating Weight | 2500 kg / 5500 lbs |
| Peristaltic Pumps | 13 (up to 6 L/min) |
| Air Pump | 1 with 0.2 µm HEPA filter |
| Monitoring | 1 K-Type Thermocouple + 1 pH Probe per tube |
Other probes available on request.
Integrated Control Module System (CMS)
Controlled Parameters
Note: User interface app may be installed on laptop, desktop, or smart devices.
Compact Commercial Rotational Photobioreactor System. Designed to deliver 1250 L total culture capacity using a four-tube rotating reactor configuration for reduced footprint and simplified deployment.
Key Highlights
Reactor Configuration
Unlike the standard Beluga, which rotates each outer reactor vessel, the IT version incorporates:
System Positioning
Compared to the six-tube Beluga configuration, the Calf provides:
| Parameter | Specification |
|---|---|
| Total Culture Volume | 1250 L / 330 US gal ±20% |
| Reactor Vessel System | RF-1250L-C-SYSTEM |
| Individual Reactor Volume | 312 L / 82 US gal |
| Power | 2.5 kW (est.) |
| Voltage | 110–120 VAC |
| Frequency | 50 / 60 Hz |
| Length | 2.6 m / 8.53 ft |
| Width | 1.95 m / 6.4 ft |
| Height | 2.25 m / 7.4 ft |
| Recommended Clearance | 1 m / 3.3 ft |
| Operating Weight | 2200 kg / 4500 lbs |
| Peristaltic Pumps | 9 (up to 6 L/min) |
| Air Pump | 1 with 0.2 µm HEPA filter |
| Heating / Cooling Jacket | Advanced culture temperature control |
| Monitoring | 1 K-Type Thermocouple + 1 pH Probe per tube |
Other probes available on request.
Integrated Control Module System (CMS)
Controlled Parameters
Note: User interface app may be installed on laptop, desktop, or smart devices.
| Model | CULTURE CAPACITY (L +/- 20%) | |
|---|---|---|
|
Minke RF-4300L |
4,300 |
4.3 m³ |
|
Orca RF-10m³ |
10,000 |
10 m³ |
|
Bowhead RF-28m³ |
28,000 |
28 m³ |
|
Fin RF-100m³ |
100,000 |
100 m³ |
|
Blue RF-1000m³ |
1,000,000 |
1,000 m³ |
Detailed technical specifications available upon request.
Controlled Environment Infrastructure for Commercial Deployment. Designed to support photobioreactor systems through environmental stabilization, ambient light utilization, and renewable energy integration.
Key Highlights
Environmental Stabilization System
The enclosure enables controlled cultivation environments while maximizing ambient solar utilization. Features include:
System Positioning
Compared to the six-tube Beluga configuration, the Calf provides:
| Parameter | Specification |
|---|---|
| Footprint | 4 m × 6 m (13 ft × 20 ft) |
| Height | 2.6 m / 8.53 ft |
| Structure | Snow load rated |
| Climate Control | −20°C to +40°C |
| Solar Capacity | Up to 14 kW |
| Electrical | 220V connection |
| Communication Port | Included |
| Lighting | Ambient + internal |
Renewable Energy and Light Optimization
LED lighting in closed systems may represent over 80% of operating energy demand and is designed to:
Monitoring and Sensor Systems
Gas and Flow Management
Liquid Handling and Process Control
Control and Integration Modules
Additional probes, sensors, and integration components are available upon request.
